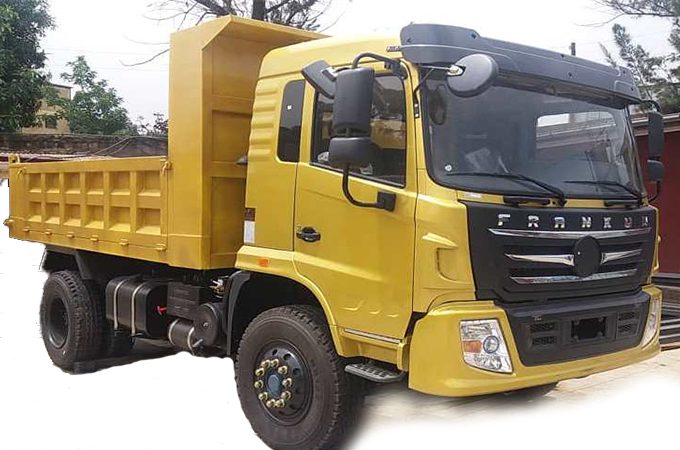

Middle Dump Truck

Model
FRK0001B
Appearance Dimension:Length*Width*Height
4000x2490*2790mm
Year of manufacture
2019 / 2020 G.C
engine
180 HP
Cargo box
Faster 8 gear box
Air Conditioner
Cool & heater ,manual control
Cabin
Flat semi-high roof cab,power- driven control glass rearview mirror (km/h)
Max speed
100 km/h
Max Climbing (%)
25
Min Ground Clearance(mm)
240
Min turn diameter (m)
16
Approaching/leaving angle
25/20
Statutory power (kw/rpm)
118 kw(160hp)/2600 r/min
Max Toruque (N.m/r.p.m)
520N.m/1300-1700 rpm
Exhause Emission Standard
EURO 2
Displacement (L)
4.26
Transmission
FAST 8JS85F,Manual 8 speeds
Gear ratio
11.7,8.23,5.83,4.07,2.87,2.0,1.43,1, Reverse gear
Clutch
430 mm(single, dry type ,diaphragm spring clutch
Steering
Hydraulically power
Front axle
153 bridge, Drum break,5 Tons
Rear axle
457 bridge,13 Tons, Main reduction ratio 6.833
Rear axle gear rate.
6.28:1
Fuel type
Diesel
Front suspension
Front :portrait positioned parabolic steel plate spring
Rear suspension
portrait positioned parabolic steel plate spring
BREAK SYSTEM
Compressed air front/rear drum brake ,diaphragm chamber. Exhaust brake, parking braking.
TRANSMISSION SHAFT
NO constant velocity universal joint
Tires
10.00R20,6 tires with1spare
Fuel Tank(L)
200 L
Electrical Power System
24V,single line,Negative electrode,140 Amp/h
Wheel base
3700 mm
Driver /Passenger seat
1+2
Sleeper
Single

Tipper is mainly used for transporting bulk cargo, such as soil, stone, slag, etc it is composed of automobile chassis, hydraulic lifting system, power take off device and container. The lifting mode is abdominal lifting.
IVECO original CURSOR-9 engine, Yhe third generation common rail engine technology of Bo Shi, low noise, longer period of maintenance, no big repair in one million and two hundred thousand kilometers, use high quality fuel. Options WELCHAI WP10.340 E32 type engine, the maximum power of 340 HP, Maximum torque of 1250 N.M, Use common quality fuel.
