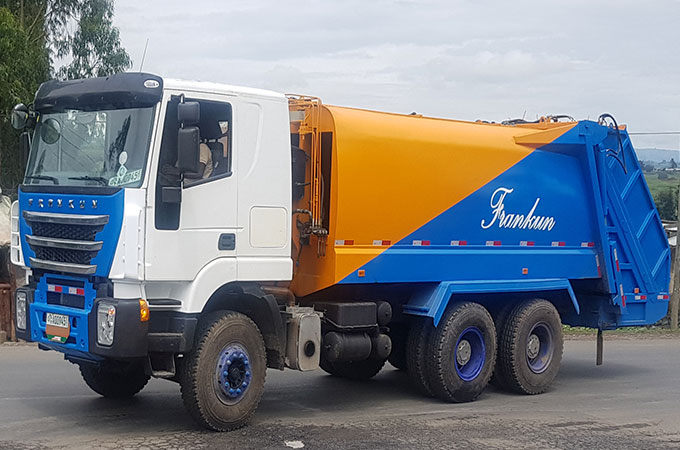

380HP 15M3 NEW BRAND COMPRESSIONAL FRANKUN GARBAGE TRUCK 6x4

Model
FR003 380HP
Year of manufacture
2019
Drive type
6x4
Engine model
WD12.380E32
Engine power
380 HP
Gear box
10JSD160
G.V.W
25000
Tire size
12.00R20
Outside dimension
9695*2500/3360mm
Wheel base
4125+1350mm
Capacity
15m3
Packing volume
1.5m3
Hydraulic system
compression
20Mpa
Period
≤25s
Unload period
≤45s
Operation
Automatic electric
Collection
Manual
Tanker thickness
≥6mm
Hydraulic system
Cylinder stronger
Truck tail
Higher and stronger

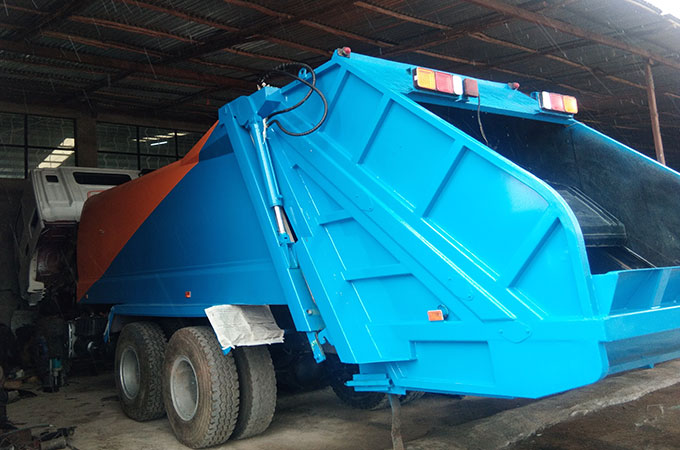

Body is Made up of garbage can, sewage tank, filler, scraper, Dozer's Multiple directional valves, hydraulic systems, device for hanging barrel and other components. Garbage can's structural for the first rectangular and rear arc- box.
Optional hopper door and rear bin lifting mechanism. Bilateral 6-cylinder hydraulic power system Has the function of automatic compression and creep compression, high compression ratio, automatic loading capacity, sealing well. Compression type garbage truck for whole sealing type, the sewage directly into the waste in the process of compression, completely solve the secondary transportation, key parts imported components. with the bucket hoisting frame body material: carbon steel, internal adopt epoxy anticorrosive processing.
Dump function, hydraulic operation, easy to dumpP Seal form are totally enclosed, on the flip, on a slide to prevent Secondary pollution.
